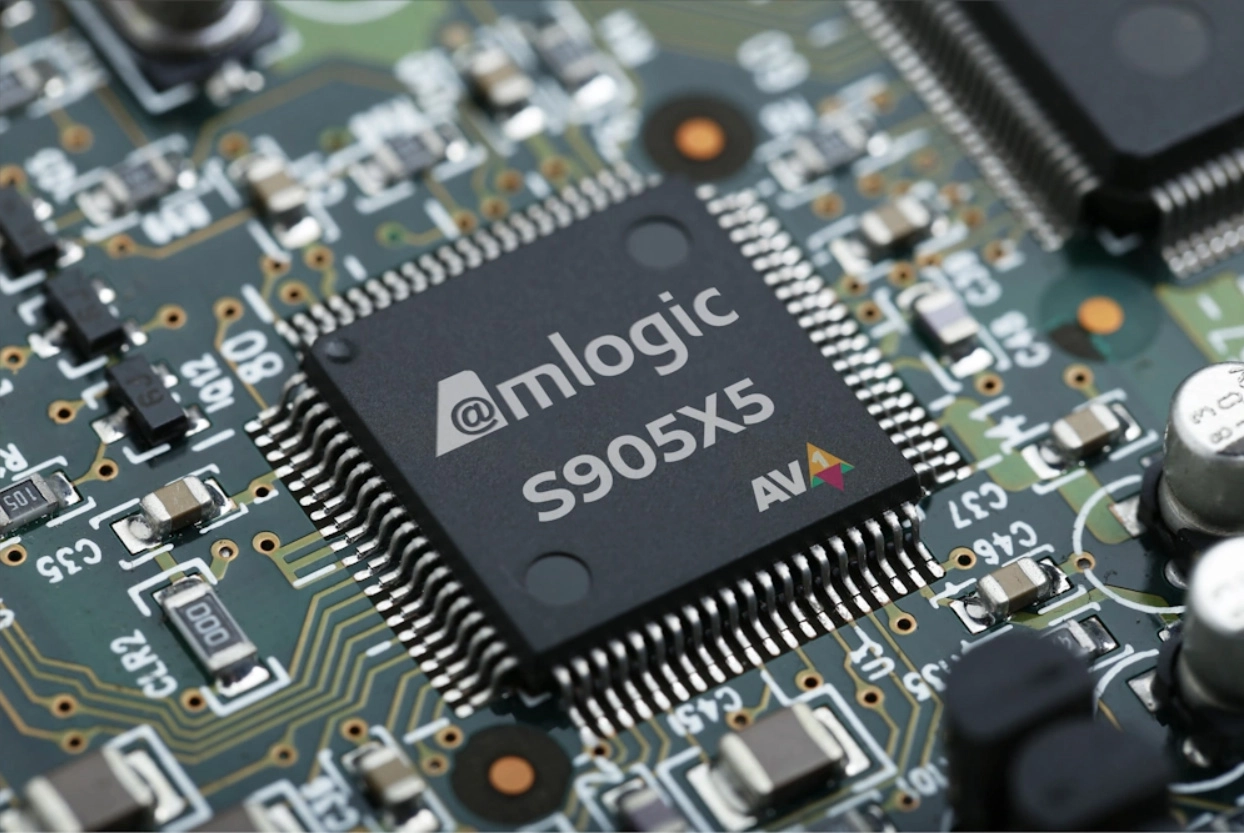

Amlogic S905X5: Next-Generation SoC for High-Performance Media Devices

Specifications for Amlogic S905X5 SoC:

SoC – Amlogic S905X5
CPU – Quad-core Armv9 CPU (likely Cortex-A510 cores) delivering 40K+ DMIPS
GPU – Arm Mali-G310 V5 entry-level GPU clocked at 1 GHz for 4K HDR user interfaces
VPU – Up to 2x 4Kp60 10-bit H.266/VCC and AV1 video codecs, and the usual VP9, AVS3, H.265/HEVC, H.264
AI accelerator – 4 TOPS NPU enabling AI-SR
Process – “Second generation” 6 nm process
System Memory & Storage – TBD
Video Output – HDMI 2.1 up to 4Kp60 with eARC (enhanced audio return channel), VRR (Variable Refresh Rate), QMS (Quick Media Switching)
Audio – Support for Dolby, Dolby Atmos
Networking – Ethernet port, likely WiFi and Bluetooth
USB – 2x USB Type-A ports, 1x USB Type-C port
AI-SR (AI super-resolution) is just an upscaling method that leverages artificial intelligence to deliver a better image quality. For example, you can stream a 1080p60 video stream on a 4K TV close to the quality of a 4K video streaming providing the AI-SR upscaling works as expected.

The Amlogic S905X5 is one of the most advanced system-on-chips (SoCs) designed to power the future of smart TV boxes and media streaming devices. Building on the success of its predecessors, the S905X5 brings a host of upgrades in video processing, performance, and AI-driven enhancements, making it a top contender for devices that demand ultra-high-definition video output and seamless streaming.

Here’s a breakdown of the key features that make the Amlogic S905X5 stand out:

1. Advanced Video Codec Support

The Amlogic S905X5 is equipped with next-generation video codec support, making it highly efficient for streaming high-quality content. The chipset supports:

• AV1 Codec: AV1 is an open-source, royalty-free codec that is 30% more efficient than its predecessor VP9 and significantly more so than H.265 (HEVC). With AV1, the S905X5 can deliver high-quality 4K and even 8K video streams at lower bitrates, making it perfect for bandwidth-conscious environments.

• H.266 (VVC): As the successor to H.265, H.266 or Versatile Video Coding (VVC) offers up to 50% better compression efficiency. This allows for smoother playback of 8K content while significantly reducing data consumption, enabling a premium viewing experience even on limited networks.

2. Artificial Intelligence Super Resolution (Ai-SR)

One of the most exciting features of the S905X5 is its support for Ai-SR (AI Super Resolution) technology. This feature uses artificial intelligence algorithms to upscale low-resolution videos to near-4K or 8K quality. The AI dynamically improves image clarity, sharpens edges, and reduces noise, allowing users to enjoy older or lower-quality content with enhanced detail and crispness on modern UHD displays.

3. Power-Efficient Performance

Built with energy efficiency in mind, the Amlogic S905X5 features an ARM Cortex-A55 CPU combined with a Mali-G31 GPU. This combination ensures smooth performance for tasks like streaming, light gaming, and running Android applications, all while keeping power consumption low. The A55 cores deliver strong multitasking capabilities and faster response times, making navigation and user interaction more fluid.

4. Support for 8K UHD and HDR10+

The S905X5 supports 8K UHD video output, ensuring it can handle the most demanding video content available today. Additionally, the chipset offers support for HDR10+ and HLG (Hybrid Log-Gamma), which bring out richer colors, deeper contrast, and brighter highlights, creating an immersive viewing experience.

5. Seamless Connectivity Options

The Amlogic S905X5 provides an array of modern connectivity features to ensure fast and reliable connections, crucial for smooth streaming. These include:

• Wi-Fi 6 support, offering faster speeds, lower latency, and better overall wireless performance in congested environments.
• Gigabit Ethernet, which ensures stable, high-speed wired internet for lag-free streaming.
• Bluetooth 5.0, allowing for easy pairing with external devices like game controllers, soundbars, or headphones.

6. Comprehensive I/O Support

In terms of hardware integration, the S905X5 supports a variety of input/output interfaces that are essential for high-end media devices:

• HDMI 2.1: This allows for 8K video output, ensuring future-proof connectivity with the latest TVs and monitors.
• USB 3.0: Enabling faster data transfers and quicker access to external storage devices like hard drives and USB sticks.

7. Android TV OS Compatibility

The Amlogic S905X5 is fully optimized for the latest versions of Android TV, giving users access to a vast array of apps, games, and streaming services. Whether you're using popular services like Netflix, Amazon Prime Video, or YouTube, the S905X5 ensures smooth playback and easy access to content.

Conclusion

The Amlogic S905X5 SoC is a powerhouse in the realm of TV boxes and media devices. Its combination of cutting-edge video codec support, AI-driven upscaling, efficient performance, and modern connectivity options makes it a top choice for manufacturers and consumers looking for a future-proof solution. Whether you're streaming 8K content, playing media-heavy games, or simply watching your favorite shows, the S905X5 ensures a smooth, immersive experience.
