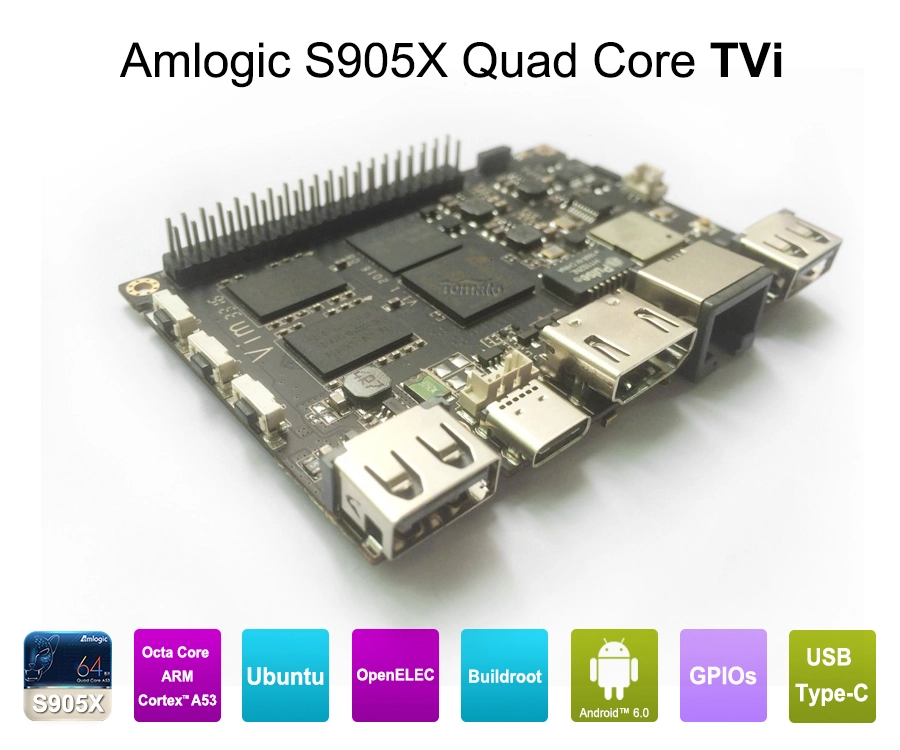

Amlogic S905X Quad Core Development Board Open Source DIY TV Box
- Model: Tvi/TVim/TGVim/TVi Lite
- CPU: Amlogic S905X 2.0 GHz 64Bit Quad Core ARM Cortex-A53 750MHz+
- OS: Android 6.0
- GPU: Penta Core Mali-450 GPU
- LAN: 10/100M
- DDR3: 1GB/2GB/2GB/1GB
- EMMC: 8GB/16GB
- WIFI: AP6212/AP6335/AP6181
- HDMI CEC: Support
- USB Type-C: USB2.0 OTG & 5V DC IN
Amlogic S905X Quad Core Development Board Open Source DIY TV Box
|
Product Parameters |
|||||
|
Model |
TVi |
TVim |
TGVim |
TVi Lite |
|
|
PCBA Dimensions |
82.0 x 57.5 x 11.5 mm |
||||
|
Processor |
Amlogic S905X |
||||
|
LAN |
10/100M |
||||
|
DDR3 (1866Mbps) |
1GB |
2GB |
2GB |
1GB |
|
|
EMMC V5.0 |
8GB |
8GB |
16GB |
8GB |
|
|
WIFI |
AP6212 |
AP6212 |
AP6335 |
AP6181 |
|
|
Bluetooth |
● |
● |
● |
- |
|
|
HDMI CEC |
● |
● |
● |
- |
|
|
TVI (Extra Power IN) |
● |
● |
● |
- |
|
|
USB Type-C |
USB2.0 OTG & 5V DC IN |
||||
|
HDMI 2.0a |
Type-A Female, up to 4K@60Hz |
||||
|
Buttons |
x3 |
x3 |
x3 |
x2 |
|
|
USB2.0 HOST |
x2 |
x2 |
x2 |
x2 |
|
|
TF Card Slot |
● |
● |
● |
● |
|
|
RTC & RTC Battery Port |
● |
● |
● |
- |
|
|
IR Receiver |
2 Channels |
1 Channel |
|||
|
40Pins 2.54mm GPIOs |
USB x 2, I2C x 2, UART x 2, SPDIF, PWM, ADC, GPIOs |
||||
|
Mounting Holes |
Size M2 x 4 |
||||
|
Android 6.0 |
● |
● |
● |
● |
|
|
Ubuntu |
● |
● |
● |
- |
|
|
OpenELEC |
● |
● |
● |
- |
|
|
MOQ |
1000 |
2000 |
|||

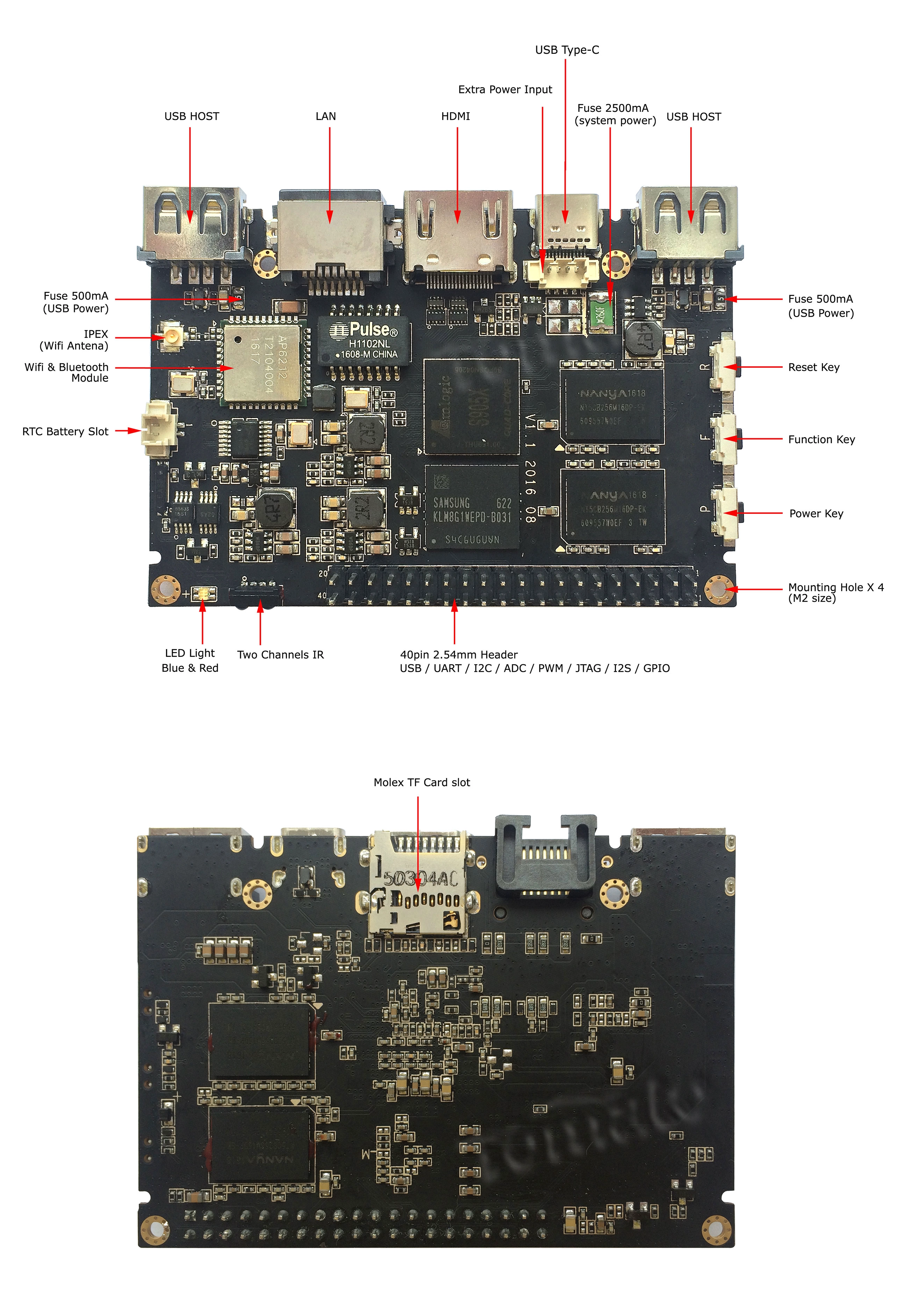

1. very small, only 82.0 x 57.5 x 11.5 mm and compact structure is adopted
2. USB Type-C Slot as power supply, it seems that TVI is the first OTT box using USB Type-C Slot
3. Imported Molex Brand for TF card slot
4. Dual PD Channel Solutions for Infrared Receiver Module (IRM)
5. DDR/EMMC use the original premium brands named SkHynix / Samsung
● about the SMD of TVI
1. strictly follow the rules of Electrical Specification, SMD with ESD and Common Mode Choke
2. strictly follow the rules of HDMI 4K Specifications, adopt the independant LDO power module to supply electricity source.
3. PCB with 6 layers for zedoary process. Others usually use 4 layers PCB
● about the design of TVI
1. 3 types of Operating system were built, they are Android 6.0, Ubuntu and OpenELEC
2. add the RTC module, realize the memory of time when power off and IoT expansion
3. add independantly MCU module, support the starting-up funtion of device through IRM and Hardware Security Function
4. Support power-on by alarm ( can set the required time to powr-on whenever you need)
5. TVI is of expansibility, our TVI is for OTT+SBC and OTT+IoT, hardware and software open source and technology support. No limited to secondary developers.
6. in the near future, we will develop the 3G/4G module, DVT-T2, Intelligent Housing IoT expansion modules, and other accessories.
Tel:+86(0755)8266-0069
Contact Person:JoJo
PDF Show:PDF
