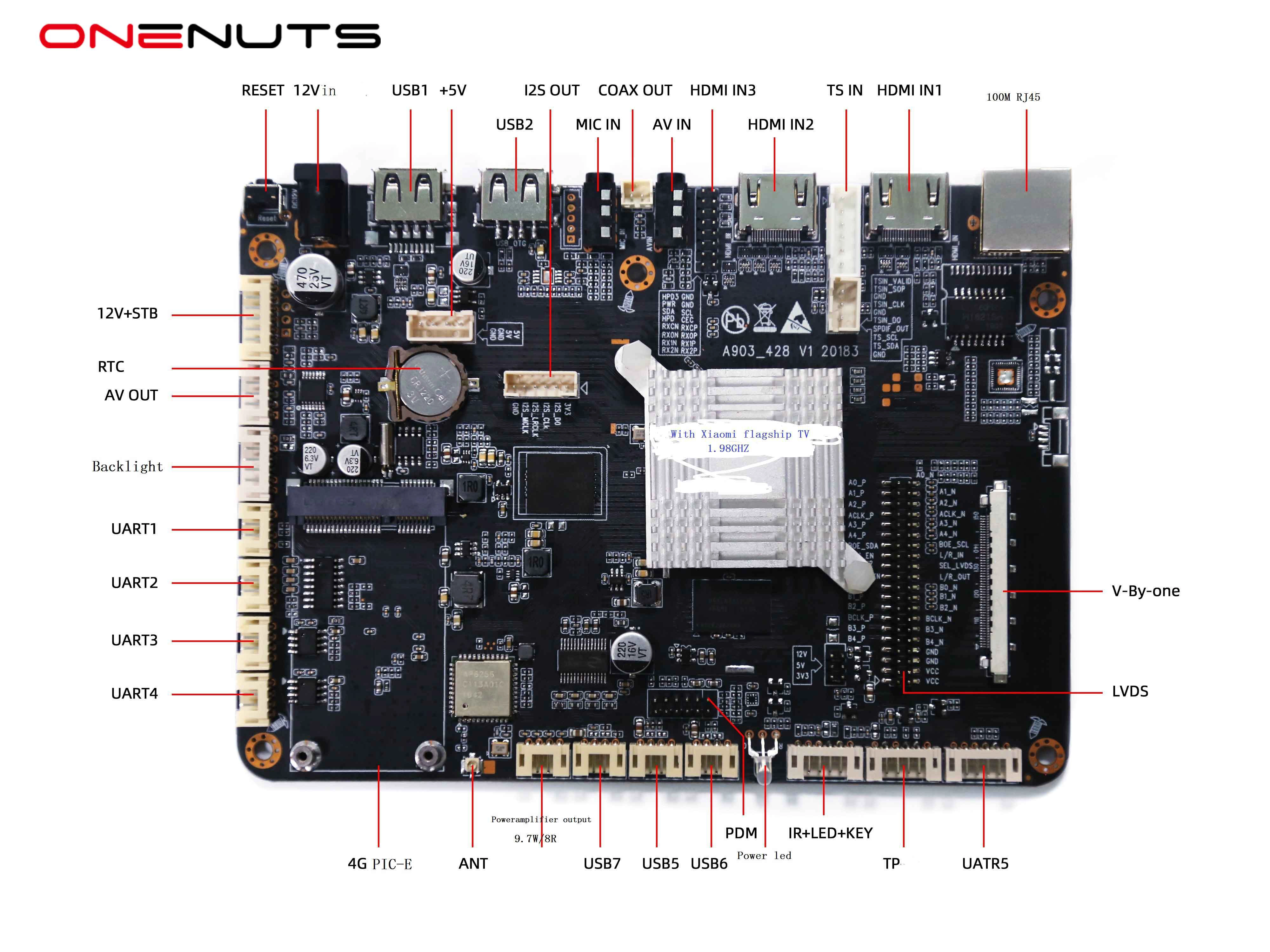

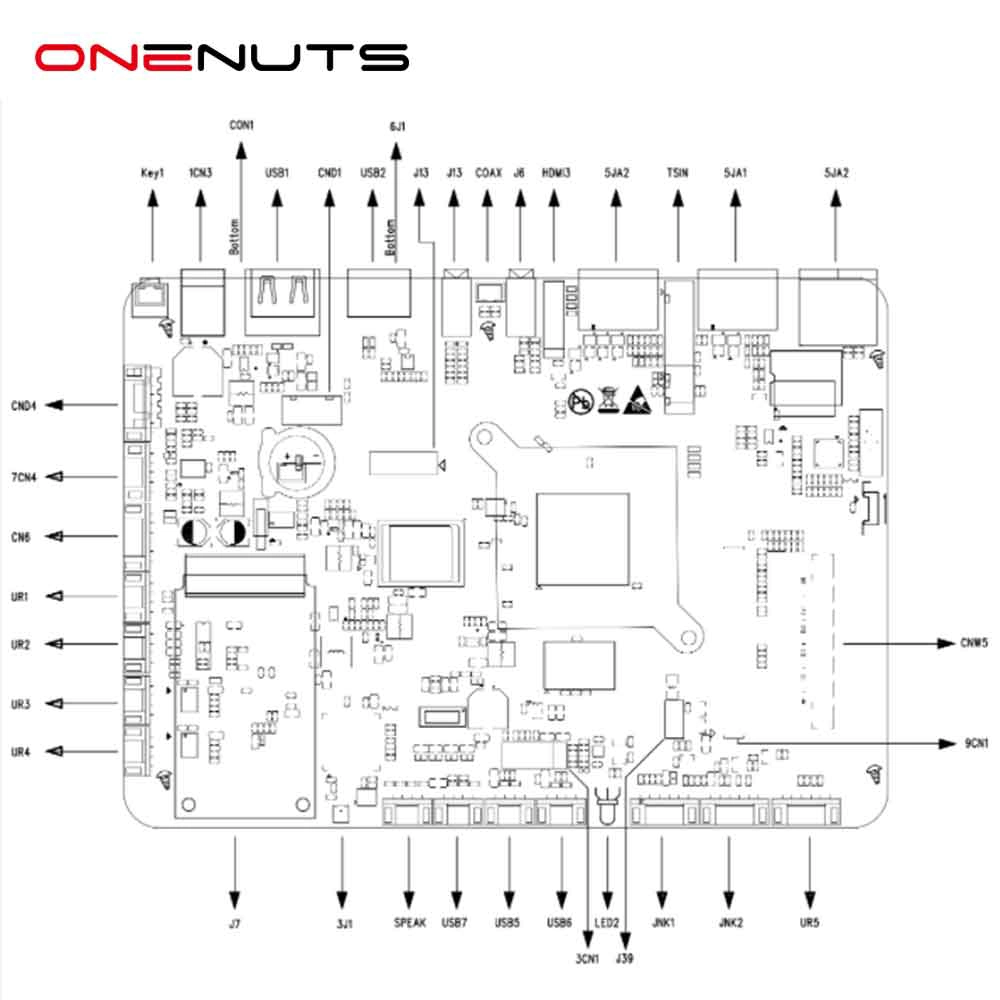

Amlogic T972 Multimedia Network Player Board

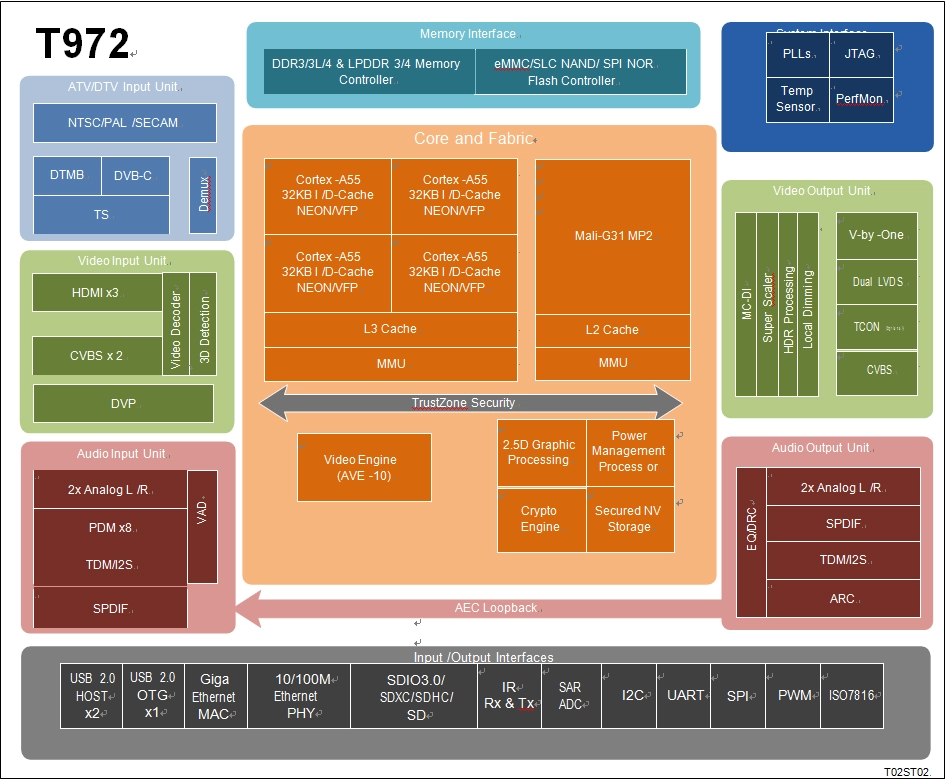

CPU Sub-system
Quad core ARM Cortex-A55 CPU
ARMv8.2 architecture with Neon extensions
Unified system L3 cache
Advanced TrustZone security system
Application based traffic optimization using internal QoS-based switching fabrics
CoreSight debugger support

3D Graphics Processing Unit
ARM Mali-G31 MP2 GPU
4-wide warps, dual texture pipe, 2x 4-wide execution engines (EE)
Concurrent multi-core processing
OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0 support

2.5 D Graphics Processor
Fast bitblt engine with dual inputs and single output
Programmable raster operations (ROP)
Programmable polyphase scaling filter
Supports multiple video formats 4:2:0, 4:2:2 and 4:4:4 and multiple pixel formats (8/16/24/32 bits graphics layer)
Fast color space conversion
Advanced anti-flickering filter

Crypto Engine
AES block cipher with 128/256 bits keys, standard 16 bytes block size and streaming ECB, CBC and CTR modes
DES/3DES block cipher with ECB and CBC modes supporting 64 bits key for DES and 192 bits key for 3DES
Hardware key-ladder operation and DVB-CSA for transport stream encryption
Built-in hardware True Random Number Generator (TRNG) and SHA-1/SHA-2 engine

Video/Picture CODEC
Amlogic Video Engine (AVE-10) with dedicated hardware decoders up to 4Kx2K@75fps
Video/Picture Decoding
VP9 Profile 2-10 up to 8Kx4K@24fps or 4Kx2K@60fps
H.265 HEVC MP-10@L5.1 up to 8Kx4K@24fps or 4Kx2K@60fps
AVS2-P2 Profile up to 4Kx2K@60fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
H.264 MVC up to 1080P@60fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats

9th Generation Advanced Amlogic TruLife Image Engine
Supports HDR10/10+, HLG, Technicolor Prime HDR
Motion compensated noise reduction and 3D digital noise reduction for random noise
Block noise, mosquito noise, spatial noise, contour noise reduction
Motion compensated and motion adaptive de-interlacer
Edge interpolation with low angle protection and processing
3:2/2:2 pulldown and Video on Film (VOF) detection and processing
Smart sharpness with SuperScaler technology including de-contouring, de-ring, LTI, CTI, de- jaggy, peaking
Local contrast and dynamic non-Linear contrast for detail enhancement
3D LUTs with 17x17x17 nodes, provide 4913 different control points, which is competent for matching calibrated displays to a target colorspace
High precision HSL color space based color management with low saturation protection, inde- pendent luma/hue/saturation adjustment to achieve blue/green extension, fresh tone correction, and wider gamut for video
Video mixer: 2 video planes and 2 graphics planes
Independent HDR re-mapping of video and graphic layer
Local dimming control for high nits backlights

LCD Panel Output
8-lane V-By-One output with 1, 2, 4 regions supported, up to 4Kx2K 60Hz resolution
Dual-channel LVDS output supporting up to 1920x1080 60Hz resolution
Built-in (1-port 6-pair)/(2-port 3-pair) mini-LVDS output with programmable HD/FHD timing con- troller Optional up to 1920x1080Hz resolution
12-lane CEDS/CHPI/CMPI/iSP output with programmable UHD timing controller Optional for UHD TCON-less panel, up to 4Kx2K 60Hz resolution
Three independent Gamma table for LCD panel tuning
Dithering logic for mapping to different LCD panel color depth

Video Input/output Interface
3x HDMI 2.1 receiver ports with Dynamic HDR, ARC, HDCP 1.4 /2.2, 4Kx2K@60 max resolution input
2x CVBS 480i/576i standard definition inputs
Supports CVBS (PAL/NTSC) bypass output
ITU 601/656 parallel camera input supporting 8-bit RGB565, CCIR656, CCIR601, YUV422, YCbCr422

Audio CODEC and Input/Output
Supports MP3, AAC, WMA, RM, FLAC, Ogg, Dolby DTS Audio Optional and programmable with 7.1/5.1 down-mixing
Low-power VAD and internal AEC loopback path
3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHzx 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch
Digital microphone PDM voice input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in serial digital audio SPDIF/IEC958 output
2 L/R analog input channels and 2 L/R output channels
Supports concurrent dual audio stereo channel output with combination of I2S+PCM
Supports Audio EQ/DRC for audio speaker

TV Demodulator
Standard compliant NTSC, NTSC-J, PAL-BG, PAL-DK1, PAL-I, PAL-DK, PAL-M, PAL-N, SE- CAM-DK2, SECAM-DK3, SECAM-L ATV demodulators
Worldwide analog TV audio standard: BTSC, A2, EIA-J and NICAM
Supports Teletext, close caption, V-chip
DTMB/DVB-C/ DTV demodulators
Build-in VIF demodulator supports low IF interface from tuner module

DTV Broadcasting Interface
3x Transport stream (TS) input interface with built-in demux processor for connecting to external digital TV tuner/demodulator
Built-in PWM, I2C and SPI interfaces to control tuner and demodulator
Integrated ISO 7816 smart card controller

Memory and Storage Interface
32-bit DRAM memory interface with dual ranks and max 4GB total address space
Compatible with JEDEC standard DDR3-2133 /DDR3L-2133 /DDR4-2666 /LPDDR3-2133
/LPDDR4-3200 SDRAM
SDSC/SDHC/SDXC card and SDIO interface with 1-bit and 4-bit data bus width supporting spec version 2.x/3.x/4.x DS/HS modes up to UHS-I SDR104
eMMC memory interface with 1/4/8-bit data bus width fully supporting spec version 5.0 HS400
SLC NAND Flash controller
Built-in 4K bits OTP memory for secured key storage

Network Interface
IEEE 802.3 10/100/1000M Ethernet MAC with RGMII interface
10/100M Ethernet PHY interface
WiFi/IEEE802.11 supporting via USB or SDIO
Bluetooth supporting via USB or UART
Network interface optimized for mixed WIFI and BT traffic

Integrated I/O Controllers and Interfaces
Triple USB 2.0 high-speed USB I/O, two USB Hosts and one USB OTG
Multiple UARTs, I2Cs and PWMs SPI interface
Programmable remote control input circuitry and IR-blaster output
Built-in 10bit SAR ADC with 4 input channels
General Purpose IOs with built-in pull up and pull down
System, Peripherals and Misc. Interfaces
Integrated general purpose timers, counters, DMA controllers
24 MHz crystal input
Embedded debug interface using ICE/JTAG

Power Management
Multiple internal power domains controlled by software
Multiple sleep modes for CPU, system, DRAM, etc.
Multiple internal PLLs to adjust the operating frequencies
Multi-voltage I/O design for 1.8V and 3.3V

Security
Trustzone based Trusted Execution Environment (TEE)
Secured boot, encrypted hardware self-setup OTP, encrypted DRAM with memory integrity checker, hardware key ladder and internal control buses and storage
Separated secure/non-secure Entropy true RNG
Pre-region/ID memory security control and electric fence
Hardware based Trusted Video Path (TVP), and secured contents (needs SecureOS software)
Secured IO and secured clock

Package
FCBGA, 19 mm x 19 mm, 0.65 ball pitch, RoHS compliant

Unleash the power of multimedia with our Amlogic T972 Multimedia Network Player Board. Engineered to deliver exceptional performance and versatility, this board is the ultimate solution for streaming, gaming, and digital signage applications.

At the core of our Amlogic T972 Multimedia Network Player Board lies the advanced Amlogic T972 chipset, renowned for its robust performance and superior multimedia capabilities. With support for 4K resolution, HDR content, and a wide range of codecs, this board ensures an immersive viewing experience like no other. Whether you're streaming your favorite movies and TV shows, gaming with friends, or creating captivating digital signage displays, the Amlogic T972 chipset delivers stunning visuals and smooth playback every time.

Designed for seamless connectivity, our Multimedia Network Player Board offers a host of input and output options to suit your specific needs. With built-in Wi-Fi and Ethernet connectivity, you can easily connect to your network and stream content from your favorite online services. HDMI and USB ports provide flexible connectivity options for external devices such as displays, speakers, and storage drives, while Bluetooth support allows for easy pairing with wireless peripherals.

Compact yet powerful, our Multimedia Network Player Board is perfect for a wide range of applications. Whether you're building a media streaming device for your living room, a gaming console for your entertainment center, or a digital signage solution for your business, this board provides the performance and flexibility you need to bring your ideas to life.

In addition to its multimedia capabilities, our Amlogic T972 Multimedia Network Player Board is also highly versatile, making it ideal for a variety of other applications. With support for popular operating systems such as Android and Linux, as well as a wide range of development tools and libraries, this board is perfect for DIY projects, prototyping, and experimentation. Whether you're a hobbyist, a developer, or a professional, our Multimedia Network Player Board offers endless possibilities for innovation and creativity.

In conclusion, our Amlogic T972 Multimedia Network Player Board is the ultimate solution for streaming, gaming, and digital signage applications. With its powerful chipset, seamless connectivity, and versatile design, it provides everything you need to create stunning multimedia experiences that captivate and engage your audience. Experience the future of entertainment with our Amlogic T972 Multimedia Network Player Board today.
