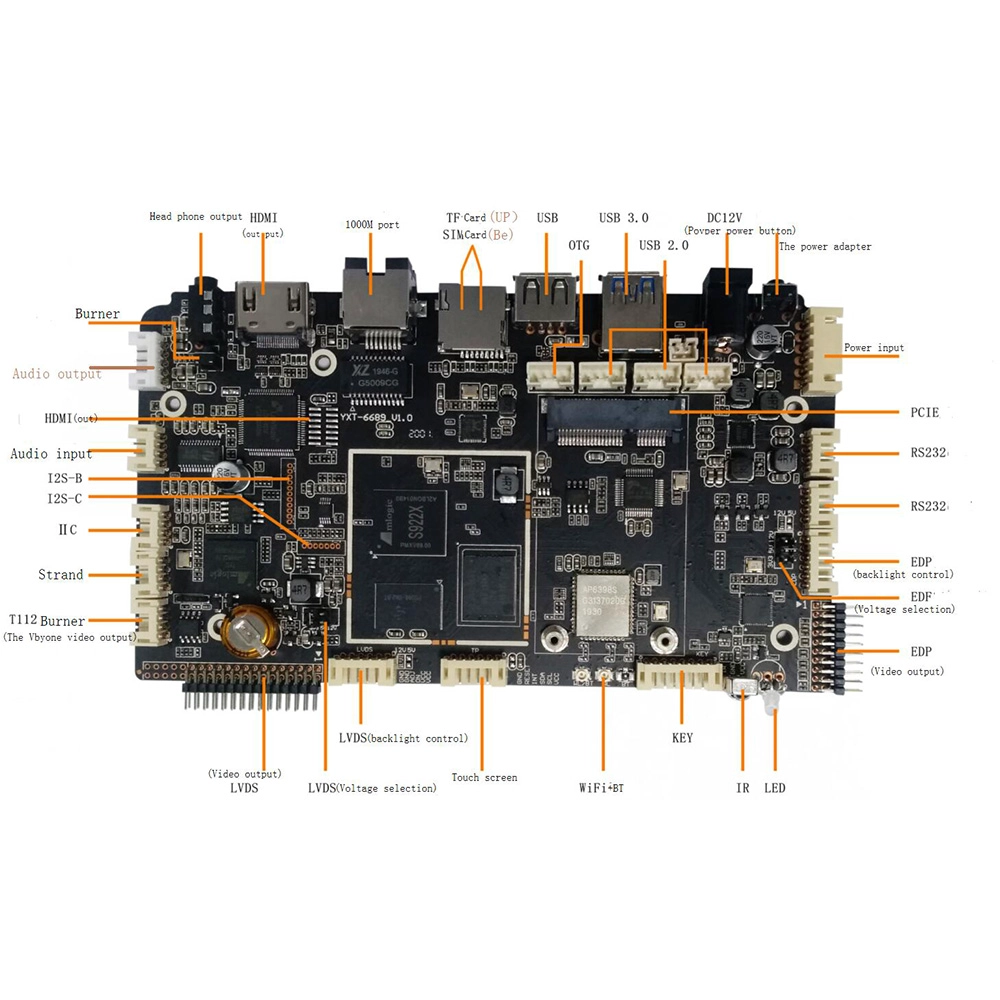

This product is the network Android system motherboard, which is suitable for intelligent display terminal equipment, industrial automation terminal, computer vision/algorithm, 3D experience, game/entertainment equipment, high-performance Face Recognition calculation/storage, AI intelligence with high performance requirements. It can be widely used as the high-end demand intelligent mainboard of finance, advertising, security, transportation, public transportation and other industries.

This product adopts the latest generation of 12 nm ultra-low power AI chip s922x of Amlogic. It is an advanced application processor, integrating a powerful CPU, GPU subsystem, secure 4K video codec engine and first-class HDR image processing. The CPU of S922x main system adopts large and small architecture, which integrates four core arm cortex-a73 CPU cluster and dual core cortex-a53 cluster with unified secondary cache to improve system performance. Each CPU core includes a separate neon SIMD coprocessor to improve the software media processing capacity. Ave-10 can decode 4kx2k resolution video at a speed of 75 frames/second, and has a complete trusted video path (TVP) for security applications, supporting complete formats, including: MVC, MPEG-1/2/4, vc-1/WMV, AVS, AVS +, avs2 realvideo, MJPEG stream, H.264, h265-10, VP9 and JPEG pictures without size restrictions. The independent encoder can encode JPEG or h.265/h.264 format, up to 1080p, 75 frames per second. It supports 4kx2k @ 60fp (3840 * 2160) output of hdmi2.2 interface and 4K point screen of V by one interface. It supports HDCP 2.2, stereo audio DAC, CVBS output, 4-channel Mipi DSI interface, multi TDM, PCM, I2S and SPDIF digital audio I/O interface, 8-Channel far-field PDM digital microphone (dmic) input and DVP camera interface. The product comes with 2x2 WiFi (supporting 2.4G and 5.8G dual frequency) + 4.1 wireless network module, supporting Gigabit Ethernet interface and infrared remote control, keyboard and mouse operation.

Highlights

o      Amlogic 64-bit quad core ARM® Cortex™ A73 CPU and dual core ARM® Cortex™ A53 CPU

o      ARM Mali-G52 MP4 GPU processor

o      HW UHD 4KH.265 75fps 10-bit video decoder & low latency 1080p H.265/H.264 60fp sencoder

o      Dolby Visionand HDR10, HDR10+, HLG and PRIME HDR video processing

o      Build in Cortex-M4 core for always on processing

o      TrustZone based security for DRM video streaming

o      WIFI, BT,USB, SD, Ethernet, Analog Audio

o      Power management auxiliary processor

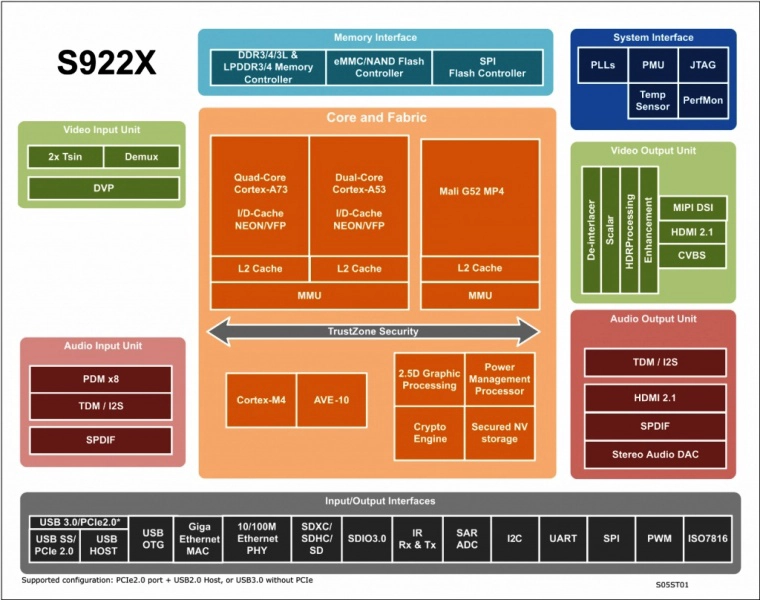

Amlogic S922X is an advanced application processor designed for Android hybrid OTT/IPTV Set Top Box(STB) and high-end media box applications. It integrates a powerful CPU, GPU subsystem, a secured 4K video CODEC engine and a best-in-class HDR image processing pipeline withall major peripherals to form the ultimate high-performance multimedia AP.

The main system CPU is based on Big. Little architecture which integrates a quad-core ARM Cortex-A73 CPU cluster and a dual-core Cortex-A53 cluster with united L2 cache to improve systemper formance. Each CPU core includes the separate NEON SIMD co- processor toimprove software media processing capability.

The graphic subsystem consists of twographic engines and a flexible video/graphic output pipeline. The ARM Mali-G52 MP4 GPU handles all OpenGL ES 3.2 Vulkan 1.0 and OpenCL 2.0 graphic programs, while the 2.5D graphics processor handles additional scaling, alpha, rotation and color space conversion operations. Together, the CPU and GPU handle all operating system, networking, user-interface and gaming relatedtasks. The video output pipeline includes Dolby Visionoptional HDR10, HDR10+,HLG and PRIME HDR processing, REC709/BT2020 processing, motion adaptive edgee nhancing de-interlacing, flexible programmable scalar, and manypicture enhancement filters before passing the enhanced image to the video outputports.

Amlogic Video Engine (AVE-10) offloads the Cortex-A53 CPUs from all video CODEC processing. It includes dedicated hardwarevideo decoder and encoder. AVE-10 is capable of decoding 4Kx2K resolution videoat 75fps with complete Trusted Video Path (TVP) for secure applications andsupports full formats including MVC, MPEG- 1/2/4, VC-1/WMV, AVS, AVS+, AVS2 RealVideo, MJPEG streams, H.264, H265-10, VP9 and also JPEG pictures with nosize limitation. The independent encoder is able to encode in JPEG orH.265/H.264 up to 1080p at 60fps.

Amlogic S922X integrates all standard audio/video input/output interfaces including a HDMI2.1 transmitter with 3D, Dynamic HDR, CEC and HDCP 2.2 support, stereo audio DAC, a CVBS output, 4-lane MIPI DSI interface, multiple TDM, PCM, I2S and SPDIF digital audio input/outputinterfaces, 8 channel far-field PDM digital microphone (DMIC) inputs and a DVPcamera interface.

Amlogic S922X also integrates a set offunctional blocks for digital TV broadcasting streams. The built-in two demuxcan process the TV streams from the serial and parallel transport stream inputinterface, which can connect to external tuner/demodulator.

The processor has rich advanced network andperipheral interfaces, including a 10/100/1000M Ethernet MAC with RGMII,10/100M Ethernet PHY, one USB XHCI OTG 2.0 port, one USB3.0 and PCIe

Unmatched Performance and Innovation As a leading Android TV Box manufacturer, we prioritize performance and innovation in every device we create. Our Android Smart TV Boxes are equipped with state-of-the-art components, including robust processors, advanced graphics capabilities, and support for 4K Ultra HD resolution. Whether you're streaming content, playing games, or browsing the web, our devices deliver smooth and responsive performance.

Comprehensive App Ecosystem Our Android Smart TV Boxes provide access to a vast ecosystem of apps, games, and streaming services through the Google Play Store. From popular streaming platforms like Netflix, Hulu, and Amazon Prime Video to a wide range of productivity apps and games, our devices offer endless entertainment options for users of all ages.

Seamless Connectivity Options Stay connected with our Android Smart TV Boxes that feature seamless connectivity options. Enjoy fast and stable Wi-Fi connections for streaming, downloading, and browsing, or utilize Ethernet connectivity for reliable wired connections. With Bluetooth support, you can easily connect wireless peripherals such as keyboards, mice, and game controllers.

User-Friendly Interface and Customization Our Android TV Boxes feature user-friendly interfaces that are easy to navigate and customize. Tailor your home screen, app layout, and settings to suit your preferences, making it convenient to access your favorite content and apps with just a few clicks.

Enhanced Multimedia Experience Immerse yourself in a world of stunning visuals and immersive audio with our Android Smart TV Boxes. Experience crisp and vibrant 4K Ultra HD content on your compatible TV, coupled with support for HDR (High Dynamic Range) for enhanced contrast and color. Enjoy cinematic sound quality with Dolby Audio support, bringing your favorite movies, shows, and games to life.

Reliable Performance and Support Our Android TV Boxes are designed for reliability and longevity, ensuring consistent performance over time. Backed by comprehensive customer support, including firmware updates and technical assistance, we strive to provide a seamless and enjoyable entertainment experience for our users.

Conclusion As a trusted Android TV Box manufacturer, we are dedicated to delivering cutting-edge devices that elevate your home entertainment to new heights. Discover the perfect blend of performance, innovation, and versatility with our range of Android Smart TV Boxes. Experience the future of entertainment today.
