Best Android TV Set Top BoxesBest Android TV Set Top BoxesBest Android TV Set Top Boxes

Best Android TV Set Top Boxes

  • Model No.: Amlogic S928X Best Android TV Set Top Boxes
  • CPU: Amlogic S928X ARM Cortex-A76+Quad-Core ARM Cortex-A55
  • GPU: ARM Mali-G57 MC2, 4K GUI OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0
  • NPU: 3.2 TOPS
  • RAM: 64-bit DDR4, LPDDR4/4X UP to 8GB DDR4266
  • eMMC: eMMC 5.1, SLC NAND Flash

Best Android TV Set Top Boxes

Specifications

Model No.

Amlogic S928X Best Android TV Set Top Boxes

CPU

Amlogic S928X ARM Cortex-A76+Quad-Core ARM Cortex-A55

GPU

ARM Mali-G57 MC2, 4K GUI OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0

NPU

3.2 TOPS

RAM

64-bit DDR4, LPDDR4/4X UP to 8GB DDR4266

eMMC

eMMC 5.1, SLC NAND Flash

Decoding resolution

Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

Decoding

AV1 MP-10 @ L6.1 up to 8Kp60

VP9 Profile-2 @ 6.1 up to 8Kp60

H.265 HEVC MP-10 @ L6.1 up to 8Kp60

AVS3 Phase 1 up to 8Kp60

AVS2-P2 Profile up to 8Kp60

H.264 AVC HP @ L5.2 up to 4Kp60

MPEG-4, WMV/VC-1, AVS, MPEG-2, MPEG-1 up to 1080p60

MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

Support multi-video decoder up to 4x 4Kp60

Encoding

JPEG image encoding up to 4Kp60

H.265 video encoding up to 4Kp60 with low latency

H.264 video encoding up to 4Kp60 with low latency

8th Generation Advanced Amlogic TruLife Image Engine with support for Dolby Vision (optional), HDR10+, HDR10, HLG, and HDR Vivid processing

AI accelerator

Up to 3.2 TOPS Neural Network Accelerator (NNA) with Tensor Processing Unit (TPU) architecture, supports TensorFlow and Caffe

Video output

HDMI 2.1a transmitter including both controller and PHY supporting CEC, Dynamic HDR, and HDCP 2.2/2.3, up to 8Kp60 max resolution output with support for eARC, VRR, QMS, QFT, ALLM, DSC & SBTM

Audio ouput

Support for MP3, AAC, WMA, RM, FLAC, Ogg Vorbis, Opus, SRS Truvolume, Dolby Audio (optional), DTS (optional), and programmable with 7.1/5.1 down-mixing

Low-power VAD

Built-in SPDIF input/output up to 192KHz 16/24/32bit stereo

3x built-in TDM/PCM/I2S ports with TDM/PCM mode up to 48kHz x 32bits x 32ch or 192kHz x 16bits x 16ch and I2S mode up to 384kHz x 32bits x 16ch

Digital microphone PDM input with programmable CIC, LPF, HPF, support up to 8 DMICs

Built-in stereo audio DAC

Network interface

10/100/1000 MAC

USB2.0 interface

1x USB XHCI OTG 2.0, 2x USB 2.0 host, 1x USB 3.0 (5 Gbps) multiplexed with PCIe 2.0

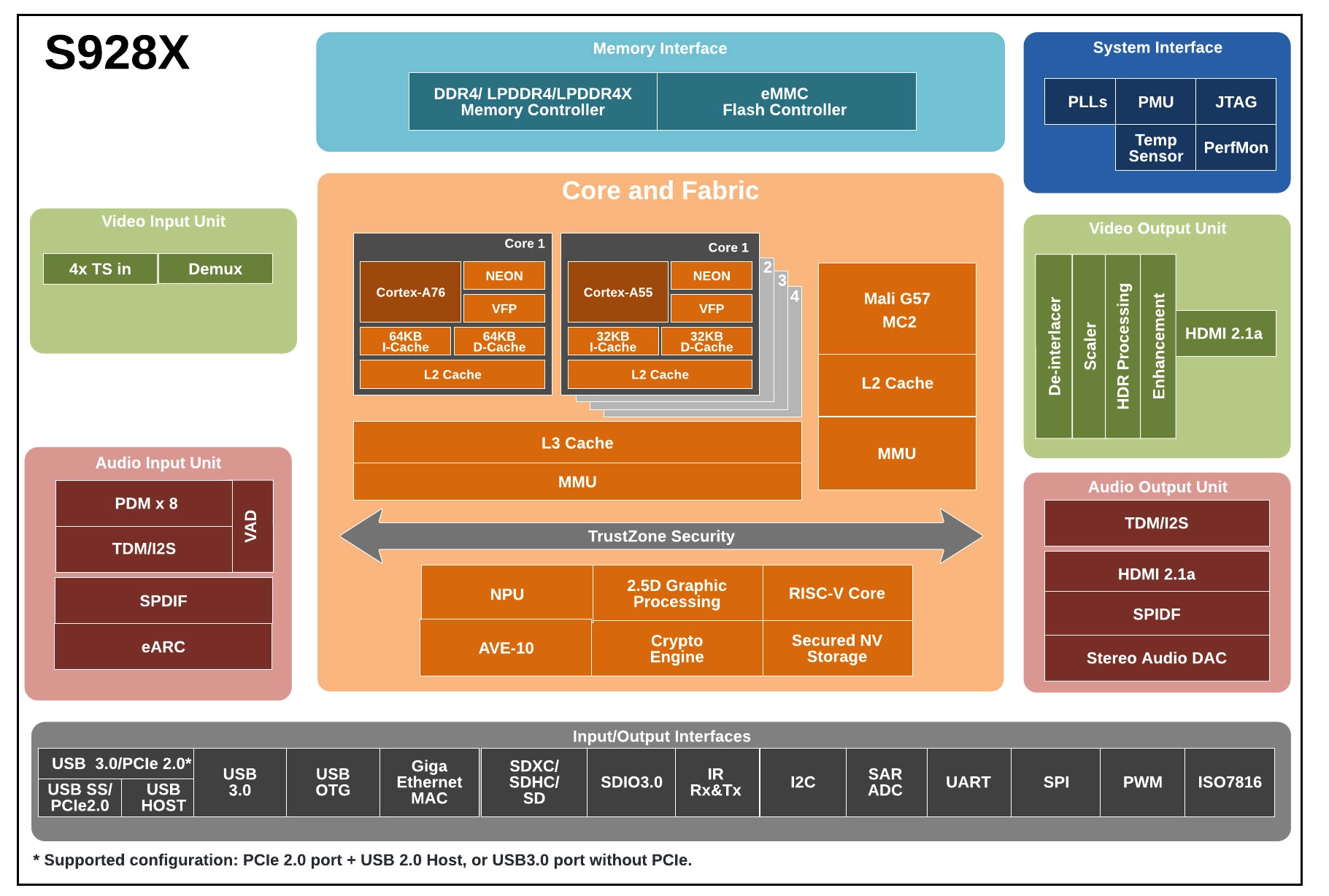

Best Android TV Set Top BoxesBest Android TV Set Top BoxesBest Android TV Set Top BoxesBest Android TV Set Top BoxesAmlogic S928X is the first 8K UHD smart STB SoC integrating ARM Cortex-A76, ARM Cortex-A55 and self-developed neural network processor. It supports 8Kp60 video decoding function of global mainstream video formats——AV1, H.265, VP9, AVS3, AVS2, etc. Meanwhile, 4K GUI, intelligent SR and other functions are viable as well, thus providing an outstanding hardware engine for customized high-end applications.

As the demand for high-performance multimedia entertainment continues to rise, Amlogic has once again delivered an innovative solution with the launch of its latest S928X chip. Designed to deliver a seamless, immersive multimedia experience, the S928X chip boasts a range of impressive features that are sure to impress tech enthusiasts and consumers alike.

One of the key selling points of the S928X chip is its powerful processing capabilities. The chip is equipped with an eight-core ARM Cortex-A53 CPU, which provides lightning-fast speeds and delivers exceptional performance for a wide range of multimedia applications. Whether you're streaming 4K content, playing high-definition games, or running multiple apps at once, the S928X chip ensures that you enjoy a smooth and uninterrupted experience.

Another standout feature of the S928X chip is its support for high-quality audio and video output. The chip supports up to 4K resolution at 60 frames per second, which means that you can enjoy your favorite movies and TV shows with breathtaking clarity and detail. Additionally, the chip supports HDR10 and HLG technologies, which provide a wider color gamut and better contrast, making your viewing experience more immersive than ever before.

The S928X chip is also designed to deliver a high-quality gaming experience. The chip is equipped with a powerful Mali-G31 MP2 GPU, which provides exceptional graphics performance and supports OpenGL ES3.2, Vulkan 1.1, and OpenCL 2.0. This means that you can play the latest games with stunning graphics and enjoy smooth, lag-free gameplay.

In addition to its impressive hardware specs, the S928X chip also features advanced software optimizations that enhance its performance and usability. The chip is based on the Android TV 10 operating system, which provides a user-friendly interface and access to a wide range of apps and content. The chip also supports Google Assistant, which allows you to control your TV and other connected devices with your voice.

The S928X chip is also designed with connectivity in mind. The chip supports dual-band Wi-Fi and Bluetooth 5.0, which ensure fast and reliable wireless connectivity. It also features a range of ports, including HDMI, USB, and Ethernet, which provide flexible connectivity options for a wide range of devices and peripherals.

Overall, the Amlogic S928X chip is a game-changing solution for high-performance multimedia entertainment. Its powerful processing capabilities, support for high-quality audio and video output, and advanced software optimizations make it a standout choice for tech enthusiasts and consumers who demand the best in multimedia entertainment. Whether you're streaming your favorite content, playing games, or using your TV for other applications, the S928X chip ensures that you enjoy a seamless, immersive experience.



Upgrade your home entertainment setup with our collection of the best Android TV Set Top Boxes. Here's why they are the perfect choice for immersive entertainment:

1. High-Performance Hardware:

Our Android TV Set Top Boxes are powered by high-performance processors and ample RAM, ensuring smooth and responsive performance for streaming high-definition content, gaming, and multitasking.

2. 4K Ultra HD Resolution:

Experience stunning 4K Ultra HD resolution for crisp and clear visuals. Enjoy your favorite movies, TV shows, and videos with vibrant colors and incredible detail.

3. Seamless Connectivity:

With built-in Wi-Fi, Ethernet ports, and Bluetooth capabilities, these TV boxes offer seamless connectivity options. Stream content wirelessly, connect to your home network, or pair external devices effortlessly.

4. Wide App Compatibility:

Access a vast library of apps, games, and streaming services from the Google Play Store. Customize your entertainment experience with apps like Netflix, YouTube, Hulu, and more.

5. Voice Control and Smart Features:

Some of our Android TV Set Top Boxes come with voice control capabilities, allowing you to search for content, control playback, and access information using just your voice. Enjoy smart features like Google Assistant integration for added convenience.

6. Compact and Stylish Design:

The sleek and compact design of these TV boxes complements any home entertainment setup. Their modern aesthetics and small footprint make them a versatile addition to your media center.

7. Versatile Connectivity:

Connect external storage devices, gaming controllers, keyboards, and other peripherals to expand the functionality of your TV box. USB ports, HDMI outputs, and microSD card slots offer versatile connectivity options.

8. Easy Setup and User-Friendly Interface:

Our Android TV Set Top Boxes are easy to set up and navigate. Enjoy a user-friendly interface that makes it effortless to access content, adjust settings, and discover new entertainment options.

Conclusion:

Upgrade to the best Android TV Set Top Boxes and transform your TV into a smart entertainment hub. Enjoy seamless streaming, gaming, and more with cutting-edge technology and versatile features. Elevate your viewing experience today.
