Android STB 4G LTE Android TV BoxAndroid STB 4G LTE Android TV BoxAndroid STB 4G LTE Android TV BoxAndroid STB 4G LTE Android TV BoxAndroid STB 4G LTE Android TV BoxAndroid STB 4G LTE Android TV Box

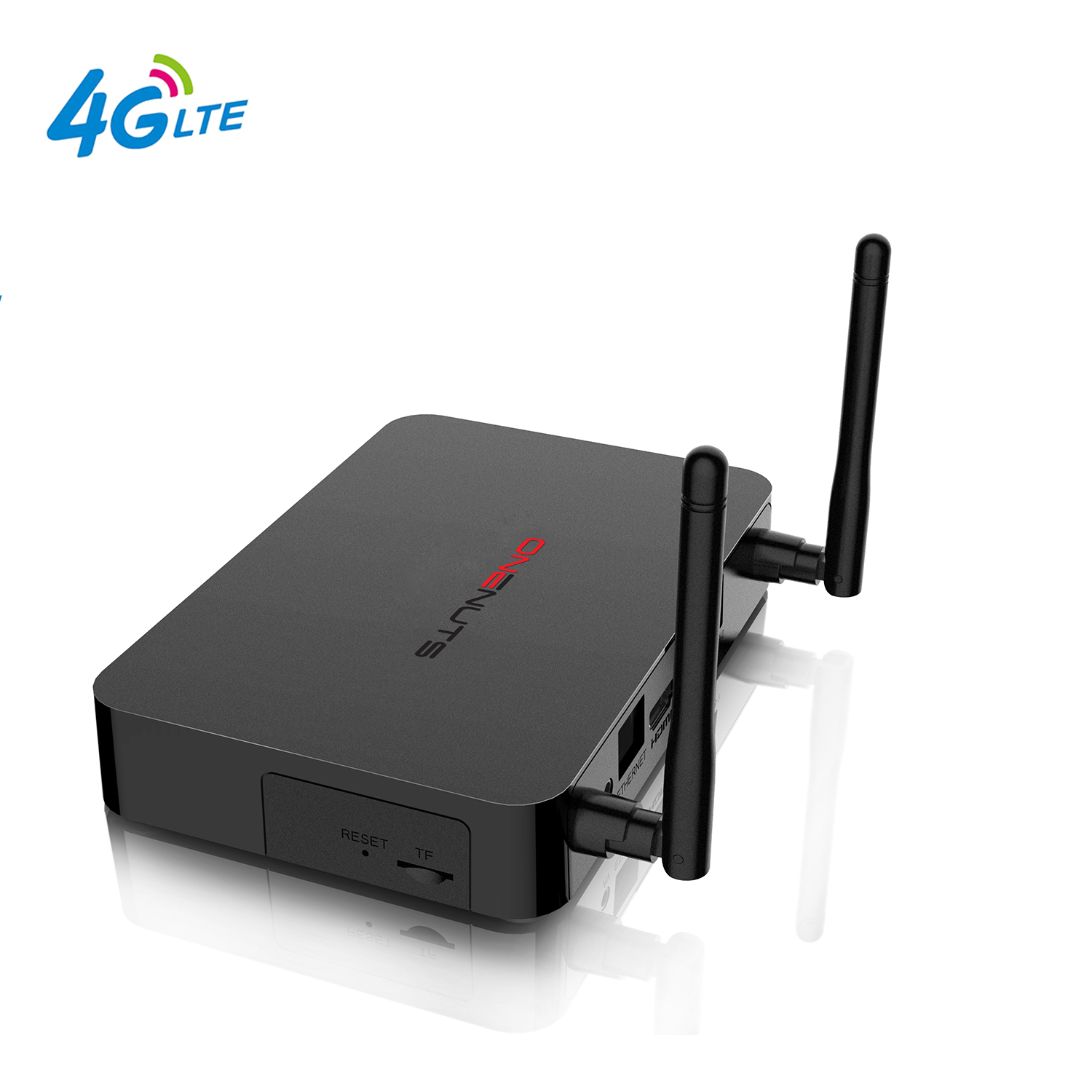

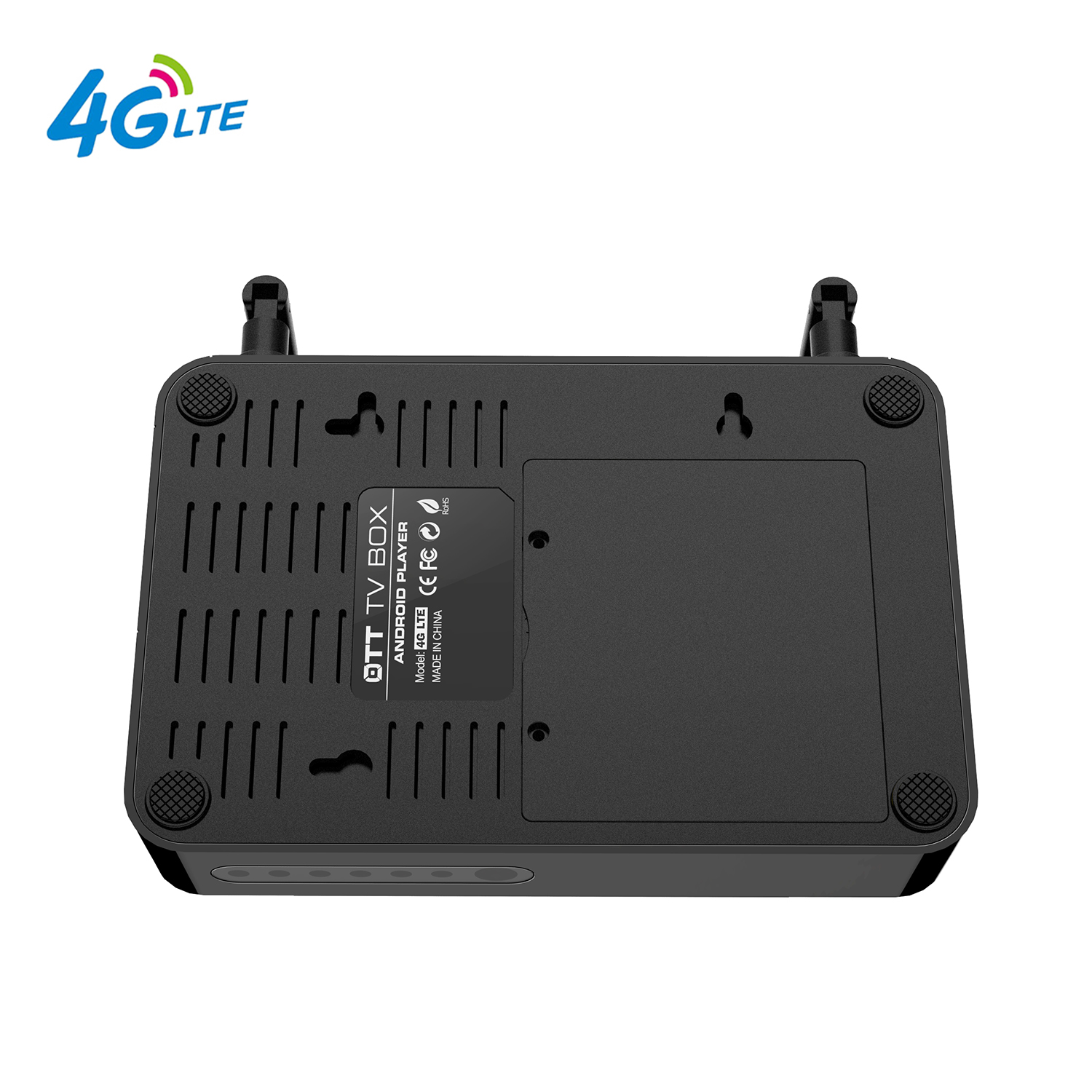

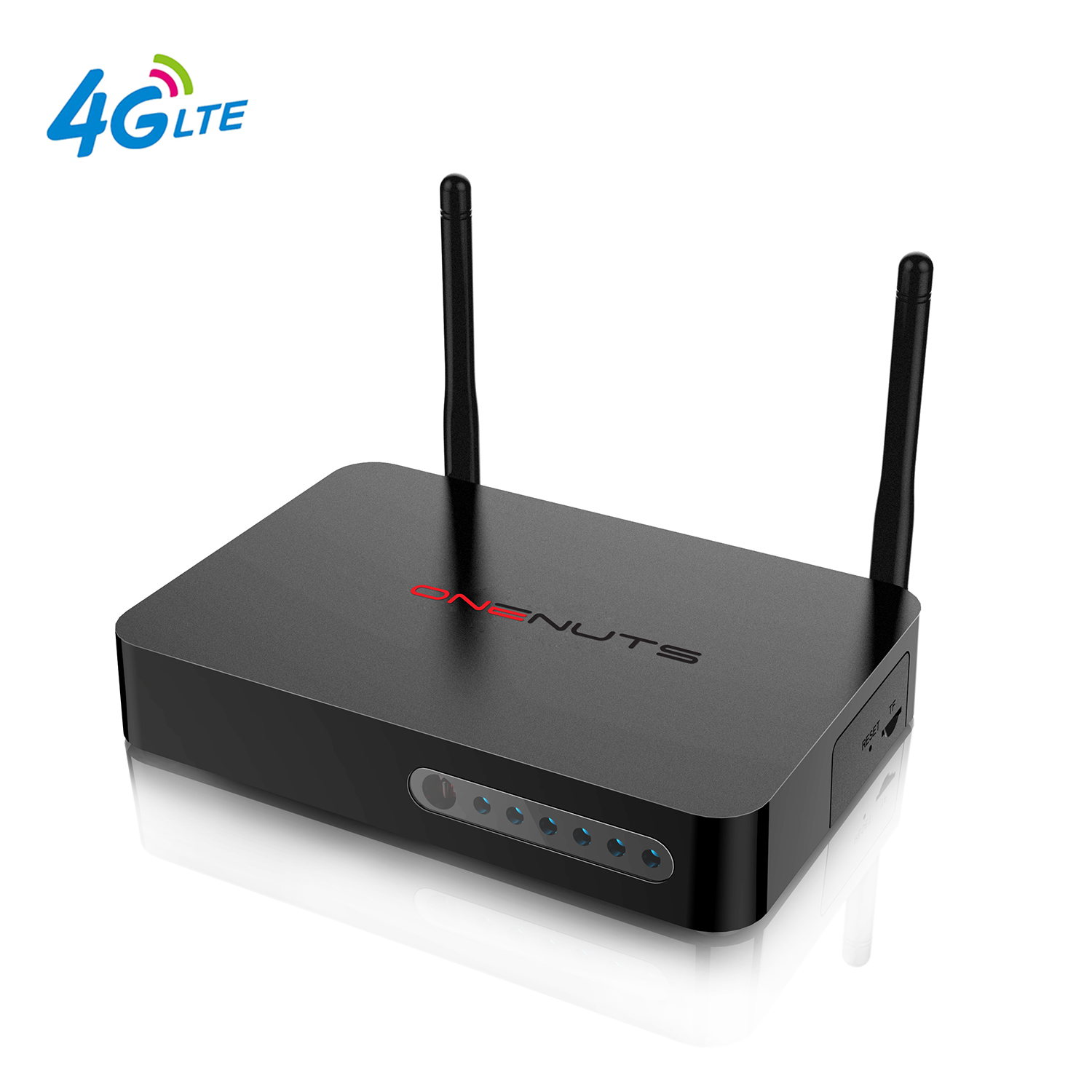

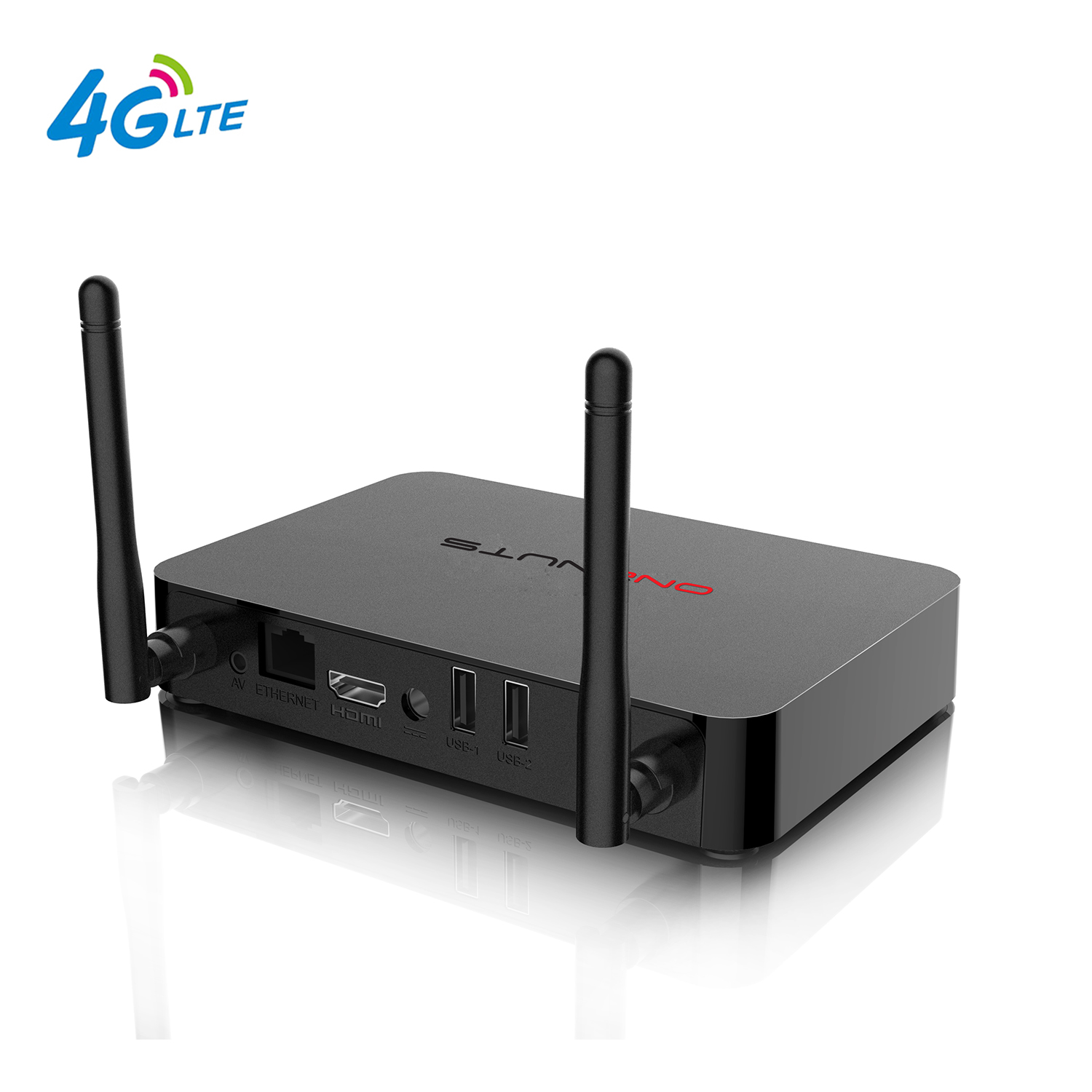

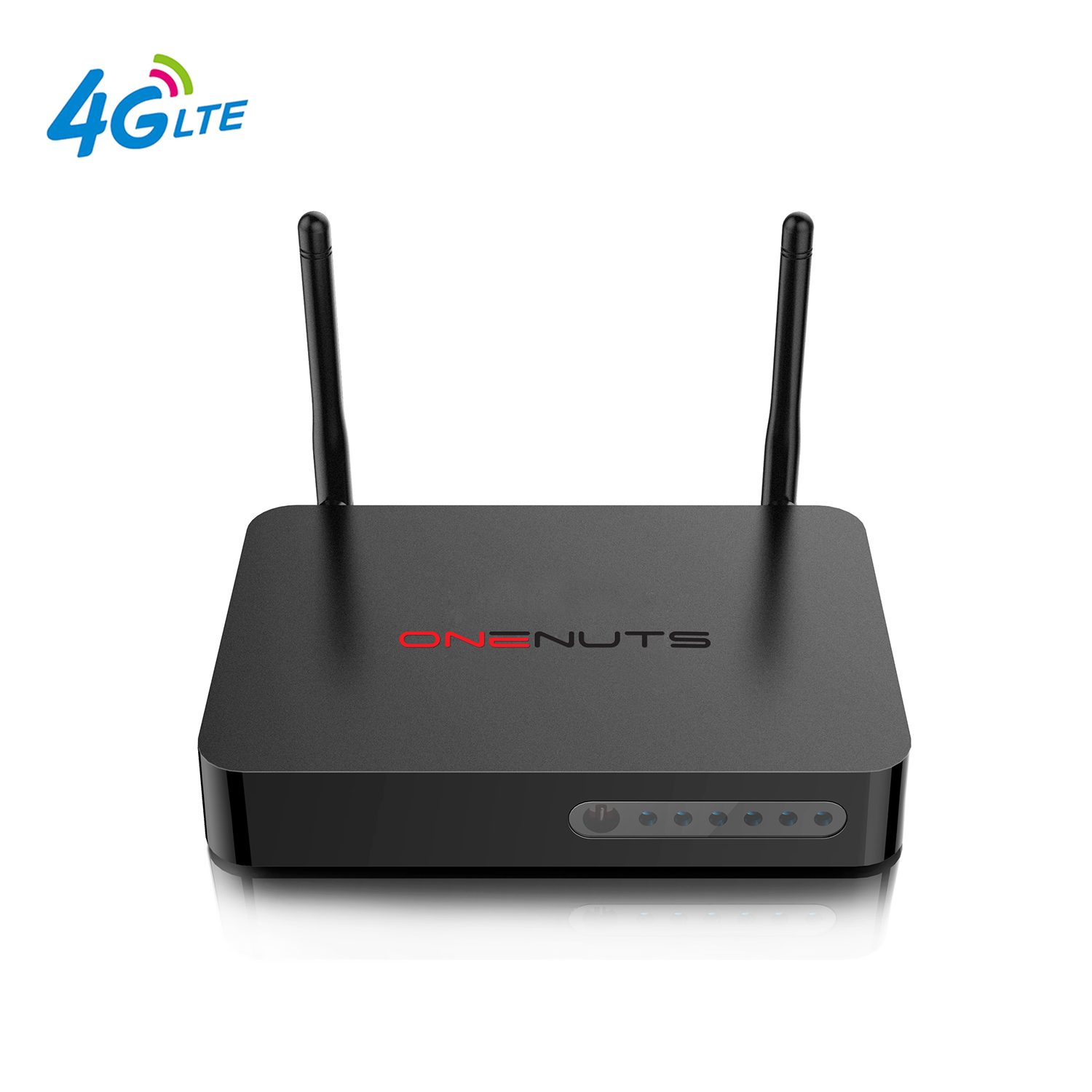

Android STB 4G LTE Android TV Box

  • Model No.:Android STB 4G LTE Android TV Box
  • CPU:Amlogic S905X Quad core ARM Cortex-A53 CPU 2GHz(DVFS)
  • GPU:Penta-Core Mali-450 Up to 750Mhz+
  • SDRAM:1GB/2GB
  • Flash:8GB/16G/32G-eMMC (Optional)
  • WiFi:WiFi (802.11b/g/n) 2.4G/5G
  • Blutooth:BT4.0
  • Android OS:Android6.0/7.0
  • Transport protocols:DLNA, Airplay

Android STB 4G LTE Android TV Box
Android STB 4G LTE Android TV Box

Specifications

Model No.

Android STB 4G LTE Android TV Box

CPU

Amlogic S905X Quad core ARM Cortex-A53 CPU 2GHz(DVFS)

GPU

Penta-Core Mali-450 Up to 750Mhz+

SDRAM

1GB/2GB

Flash

8GB/16G/32G-eMMC (Optional)

WiFi

WiFi (802.11b/g/n) 2.4G/5G

Blutooth

BT4.0

LAN Ethernet

Ethernet:100M, Standard RJ-45

Android OS

Android6.0/7.0

Transport protocols

DLNA, Airplay

4G LTE Module(optional)

Internal 4G LTE Module(optional)

LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/EDGE/GPRS/GSM, downstream 150Mbps, upstream 50Mbps

MHZ-E (EUROPE)

B1/B3/B5/B7/B8/B20@FDD LTE, B1/B5/B8@WCDMA, 850/900/1800/1900@GSM

MHZ-A (AMERICA)

B2/B4/B8/B17@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA,B34/39@TD-SCDMA, 900/1800@GSM

MHZ-CE (CHINA/INDIA)

B1/B3/B5/B8@FDD LTE, B38/B39/B40/B41@TDD LTE, B1/B8@WCDMA, B34/B39@TD-SCDMA, BC0@CDMA2000 1X/EXDO, 900/1800@GSM

MHZ-E(EMEA/KOREA/THAILAND/INDIA)

B1/B3/B5/B7/B8/B20@FDD LTE;B38/B40/B41@TDD LTE; B1/B5/B8@WCDMA; B3/B8@GSM

MHZ-V(NORTH AMERICA)

B4/B13@FDD LTE

MHZ-A(NORTH AMERICA)

B2/B4/B12@FDD LTE; B2/B4/B5@WCDMA

MHZ-AU(Latin America/ANZ/TAIWAN)

B1/B2/B3/B4/B5/B6/B7/B8/B28@FDD LTE; B40@TDD LTE; B1/B2/B5/B8@WCDMA; B2/B3/B5/B8@GSM

MHZ-J(JAPAN)

B1/B3/B8/B18/B19/B26@FDD LTE; B41@TDD LTE; B1/B6/B8/B19@WCDMA

Internal zigbee(optional)

Zigbee/ZigbeePRO/ZigbeeRF4CE/6LoWPAN, @2400-2483.5MHz

Main Features

Video Docoder

H.265 4K @60fps 10btis, VP9 Profile 2, H.264 4K@30fps, AVS+ 1080P@60fps, H.264 1080P @60fps

Decoder format

HD MPEG1/2/4,H.265/HEVC, HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6, RealVideo8/9/10

Media format

Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg

Music format

MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE

Photo format

HD JPEG/BMP/GIF/PNG/TIFF

Network Function

Miracast, Airplay, Skype chatting, Picasa, Youtube, Flicker, Facebook, Online movies, etc.

Language

Chinese, English ,Germany, Japanese, Korea etc.

Port Specifications

USB host

2* external USB2.0,  2*internal USB 2.0

Card reader

1* TF CARD

Micro-SIM

1* Micro-SIM, 1* hidden Micro-SIM card slot

HDTV

1* HDTV output

LAN

1* RJ45 LAN Ethernet 10M/100M

AV OUT

1* AV-OUT/IR-in (optional)

Others

Power Supply

Input100-240V AC, Output5V/2A DC

Internal recharge lithium battery(optional)

18650 battery 1-3 pcs or equivalent battery module

























Why choose Android STB 4G LTE Android TV Box?

1. With the 4G LTE Modules, use the network anytime, anywhere, No restrictions on WIFI and network cable.

2. Different 4G LTE modules for selection. Support multiple countries to meet the needs of different customers.

3. Built in battery inside of the player, can update the time properly without the internet, ideal for customers with digital signage.

4. The Advantage of humanized design, the player has four holes on the back , can be hung behind the screen, moreover, the size is very mini, suitable for digital signage customers.

5. High cost performance, high configuration, good quality.

Android STB 4G LTE Android TV BoxAndroid STB 4G LTE Android TV BoxAndroid STB 4G LTE Android TV BoxAndroid STB 4G LTE Android TV BoxUnlock High-Speed Entertainment with Android STB 4G LTE Android TV BoxUnlock High-Speed Entertainment with Android STB 4G LTE Android TV Box
Unlock High-Speed Entertainment with Android STB 4G LTE Android TV Box


Our Android STB 4G LTE Android TV Box is designed to provide users with a high-speed and feature-rich entertainment experience. Here are the key features and benefits:

High-Speed 4G LTE Connectivity:

The TV box comes with built-in 4G LTE connectivity, allowing users to enjoy high-speed internet access for streaming, downloading, and browsing without any interruptions.

Android Operating System:

Running on the Android operating system, the TV box provides access to a wide range of apps, games, and content from the Google Play Store. Users can customize their entertainment experience with ease.

4K Ultra HD Streaming:

Experience crystal-clear 4K Ultra HD streaming with support for high-resolution content. Enjoy your favorite movies, TV shows, and videos in stunning detail and vibrant colors.

Powerful Performance:

Equipped with a powerful processor and ample RAM, the TV box delivers smooth performance for multitasking, gaming, and streaming without any lags or delays.

Versatile Connectivity Options:

The TV box features multiple connectivity options, including HDMI, USB, Ethernet, and Wi-Fi, allowing users to connect to various devices and peripherals effortlessly.

Expandable Storage:

With support for external storage devices, users can expand the storage capacity of the TV box to store more apps, games, and media files.

Enhanced Multimedia Experience:

Enjoy an enhanced multimedia experience with support for various audio and video formats. Connect to external speakers or sound systems for immersive audio playback.

User-Friendly Interface:

The intuitive user interface makes navigation and content discovery easy. Users can access their favorite apps, settings, and content with just a few clicks.

Compact and Stylish Design:

The sleek and compact design of the TV box blends seamlessly with any home entertainment setup. Its modern design and small footprint make it a versatile addition to any living room or media center.

Conclusion:

In conclusion, our Android STB 4G LTE Android TV Box offers high-speed connectivity, powerful performance, and a range of features to enhance your entertainment experience. Upgrade your home entertainment setup with this versatile and advanced TV box.
