Enhanced Set Top Box with 2.4G 5G MIMO WiFi 1000M LAN Bluetooth 5.0
- Model No.: Amlogic S905X3 Set Top Box
- CPU: Amlogic S905X3 Quad-Core ARM Cortex-A55 up to 2.0GHz
- GPU: ARM Mali-G31
- SDRAM: 4GB DDR4
- eMMC: 32GB eMMC Flash
- Network: Built in WiFi Support IEEE802.11a/b/g/n/ac/ax 2x2 Access Points with MIMO standard and can accomplish up to speed of 1200Mbps with dual stream in 802.11ax to connect the wireless LAN.
- 1000M Ethernet Support
- Android OS: Android 9.0/ATV
- Blutooth: Bluebooth 5.0
- DRM: Widevine (Verimatrix/ Playready optional)

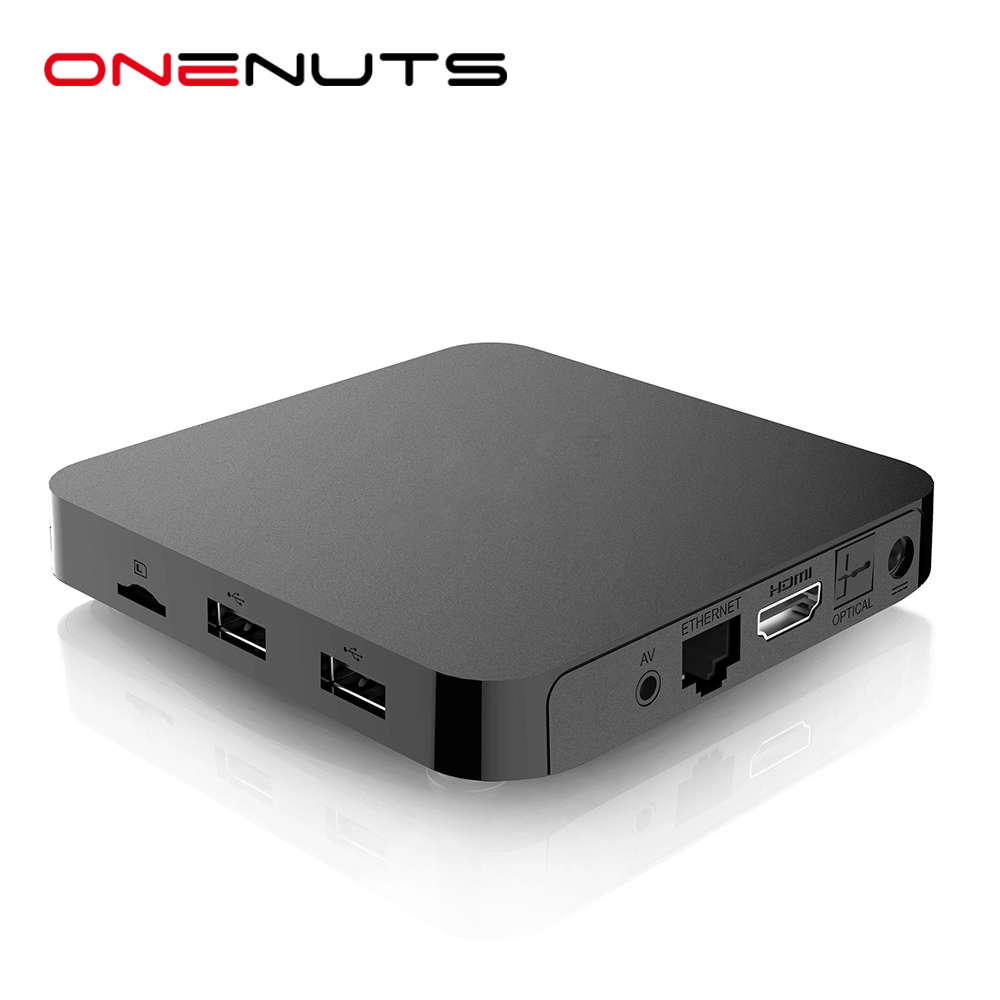

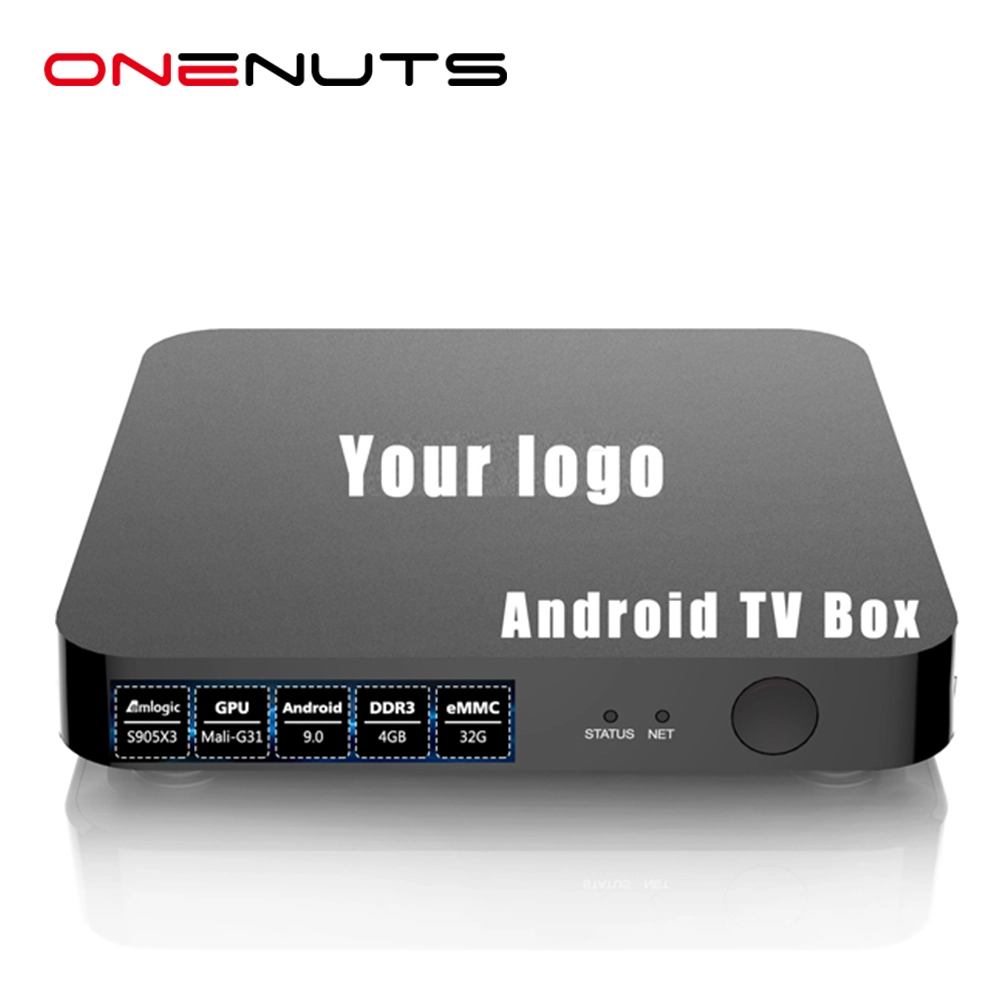

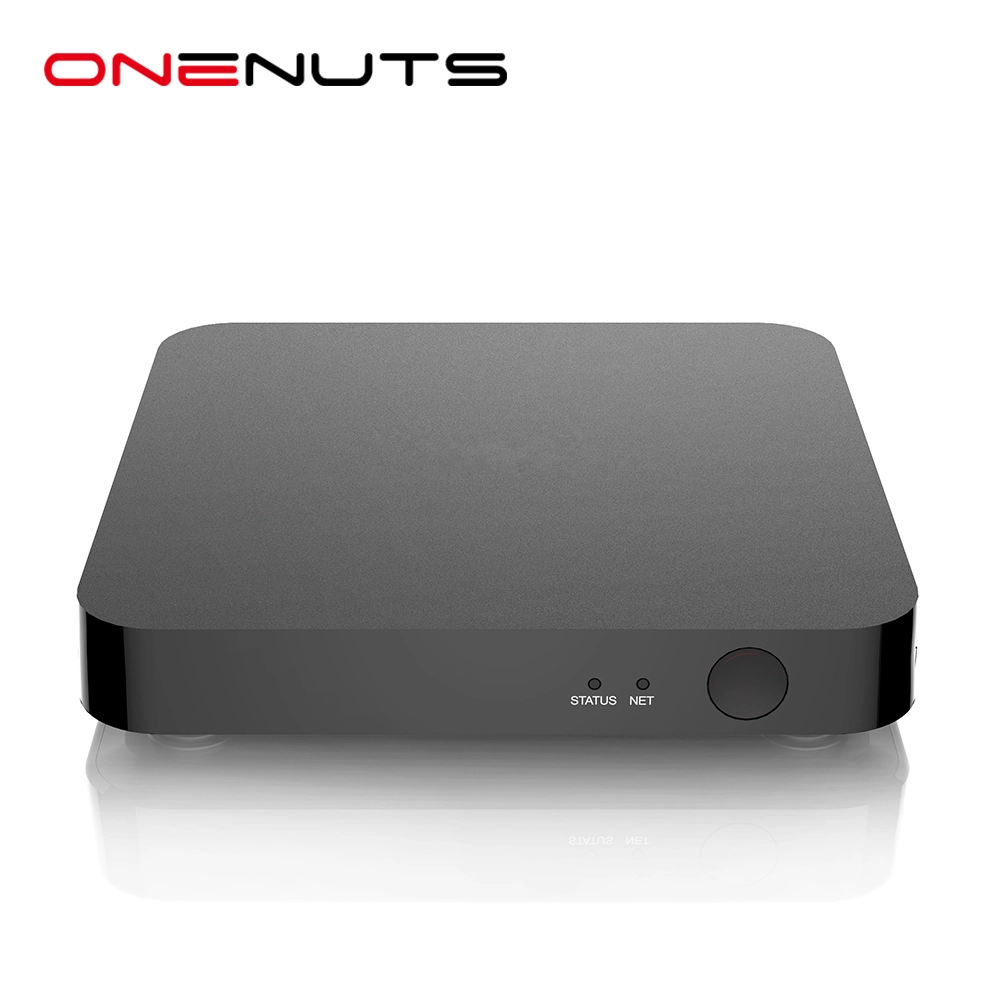

Enhanced Set Top Box with 2.4G 5G MIMO WiFi 1000M LAN Bluetooth 5.0
|
Specifications |
|
|
Model No. |
Amlogic S905X3 Set Top Box |
|
CPU |
Amlogic S905X3 Quad-Core ARM Cortex-A55 up to 2.0GHz |
|
GPU |
ARM Mali-G31 |
|
SDRAM |
4GB DDR4 |
|
eMMC |
32GB eMMC Flash |
|
Network |
Built in WiFi Support IEEE802.11a/b/g/n/ac/ax 2x2 Access Points with MIMO standard and can accomplish up to speed of 1200Mbps with dual stream in 802.11ax to connect the wireless LAN. |
|
1000M Ethernet Support |
|
|
Android OS |
Android 9.0/ATV |
|
Blutooth |
Bluebooth 5.0 |
|
DRM |
Widevine (Verimatrix/ Playready optional) |
|
Video & Audio CODEC |
|
|
Video& Audio |
VP9/H.265/AVS2 up to 4Kx2K@60fps,H.264 4K @30fps, AVS+/VC-1/MPEG1-4 1080P @60fps H.264/H.265 1080P @60fps HD MPEG1/2/4,H.265/HEVC, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6,RealVideo8/9/10 Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE HD JPEG/BMP/GIF/PNG/TIFF |
|
HDR |
HDR 10, Dolby Vision |
|

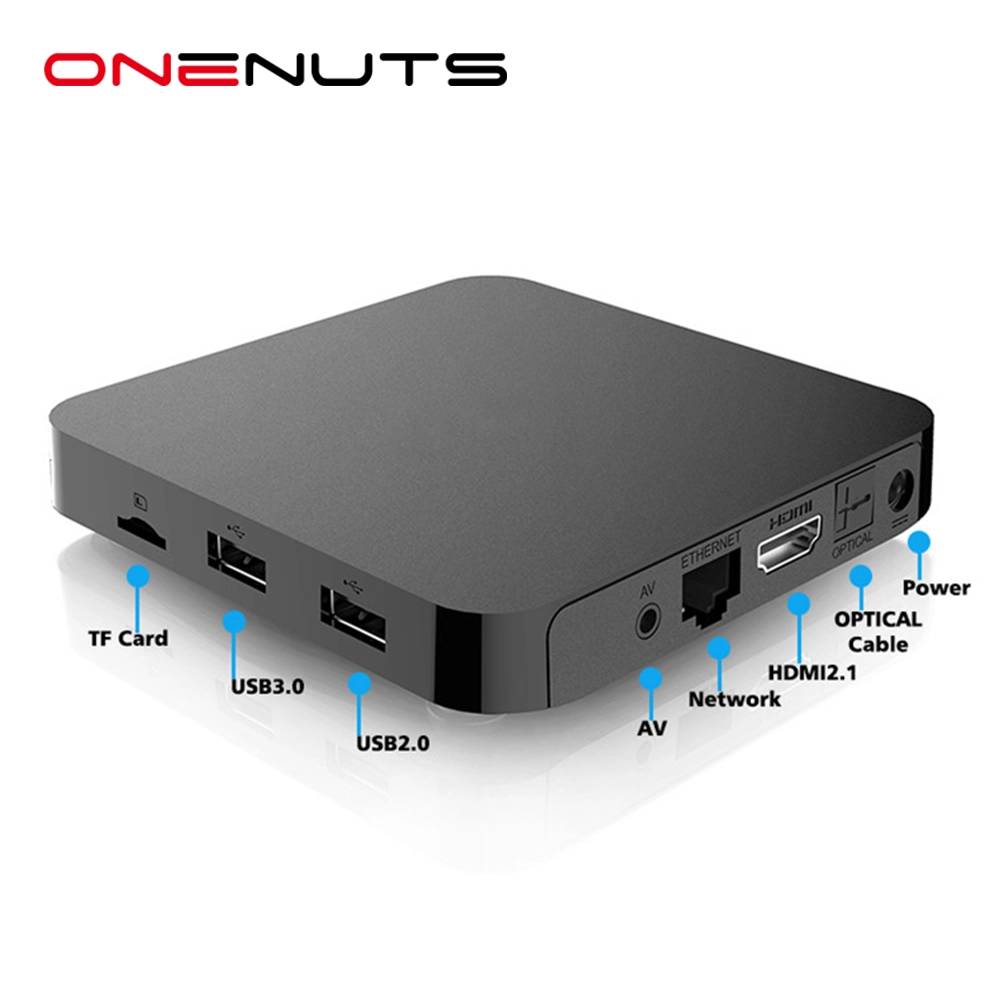

I/O |
|
|
HDMI |
1 *HDMI 2.1 With 3D, HDR, CEC and 4Kx2K@60fps max resolution |
|
AV OUT |
1 * AV output |
|
USB |
2* High Speed USB 2.0, Support USB Flash Drive and USB HDD |
|
RJ45 |
Standard RJ-45 Ethernet |
|
Network Function |
Miracast, DLNA, Airplay, Skype, Netflix, Twitter, Picasa, Youtube, Flicker, Facebook, Online movies, Games, etc. |
|
TF CARD |
1 *TF Card Slot |
|
SPDIF |
Support Optical Output |
|
IR Port |
External Infrared Receiver |
|
LED Indicator |
Power on: Blue; Standby: Red |
|
Others |
|
|
Power Supply |
AC100-240V 50/60Hz, DC 5V/2A |
|
Language |
English, German, Russian, French, Spanish, Italian, Arabic, Japanese, Korean, Hebrew, etc. Multi Languages |
|
Application |
KODI newest version Support local high-definition play, support plug-in installation and play |
|
Accessory |
User manual, HDMI cable, IR remote, Power adadpter |
|
Option |
Support mouse and keyboard via USB or BT; Support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle |
Elevate your entertainment experience with our Set Top Box. Featuring 2.4G/5G MIMO WiFi for fast and reliable connectivity, a high-speed 1000M LAN connection, and Bluetooth 5.0 for seamless device pairing. This Set Top Box is your gateway to a world of entertainment.
Elevate Your Entertainment Experience with Our Enhanced Set Top Box:
-
Dual-band MIMO WiFi: Enjoy faster and more stable internet connections with 2.4G/5G dual-band MIMO WiFi, ensuring smooth streaming and browsing experiences.
-
High-speed LAN: With 1000M LAN, experience lightning-fast wired internet connections for lag-free streaming and gaming.
-
Bluetooth 5.0: Connect your favorite Bluetooth-enabled devices such as headphones, speakers, and game controllers for enhanced versatility and convenience.
-
4K Ultra HD Streaming: Immerse yourself in stunning 4K Ultra HD resolution for crisp, lifelike visuals and vibrant colors.
-
Powerful Performance: Equipped with advanced hardware and optimized software, our set-top box delivers smooth multitasking and fast loading times.
-
Expandable Storage: Store your favorite movies, music, and apps with ease thanks to expandable storage options.
-
User-friendly Interface: Navigate effortlessly through menus and apps with a user-friendly interface, suitable for users of all ages.
-
Access to Content: Enjoy access to a vast library of movies, TV shows, music, games, and apps through popular streaming platforms and app stores.
-
Easy Setup: Set up your Enhanced Set Top Box quickly and easily, and start enjoying your favorite content right away.
-
Enhanced Entertainment: Whether you're streaming movies, gaming, or catching up on your favorite TV shows, our Enhanced Set Top Box provides an immersive entertainment experience for the whole family.
Upgrade your entertainment setup with our Enhanced Set Top Box and enjoy seamless streaming, gaming, and multimedia playback with enhanced connectivity and performance.
